Description
Tags

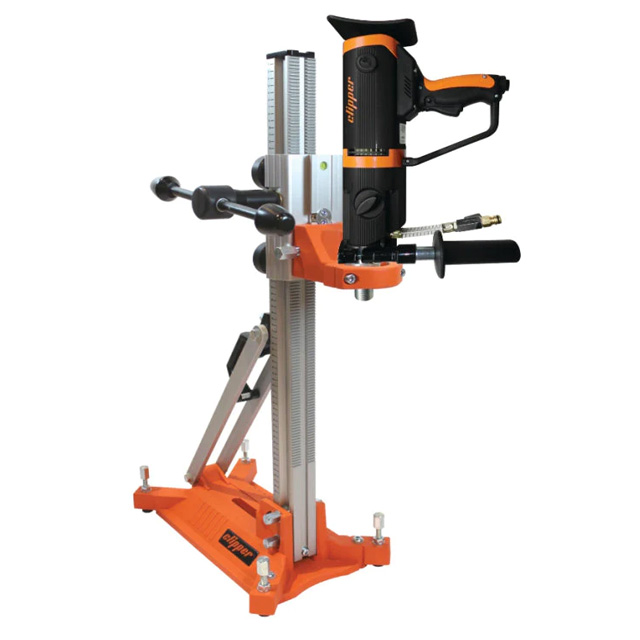

Norton CDM 163 Core Drill with Rig Stand
CDM 163 + CDR 163

Norton CDM 163 Core Drill	Norton CDR 163 Rig Stand
Powerful 1.8kW, 3 Speed Handheld Drill Motor with combined spindle 1/2 + 1-1/4". Can be used on a drill stand.	Aluminum drill stand combining rigidity, precision and ease of use. Accurate and smooth drilling guide of four high performance nylon rolls. Easily accessible guiding wheels for wear compensation adjustment.

Features CDM 163	Benefits CDM 163
• Powerful 1800W drilling motor • Combined spindle • Ergonomic handles. • 60mm ring on body • 3-speed gearbox • Oil-bath lubricated gearbox • Mechanical clutch • Soft-start switch • Overload protection • Delivered in suit case	• For both handheld and rig-mounted drilling • For the mounting of 1-1/4 and 1/2 core bit • East torque-control and comfortable to use • Can be mounted on drill rig • For a wide drilling diameter range • Maintenace-free, Life-Long Lubrication • For users of safety • Limitation of starting current and speed. • Protection of electrical & mechanical parts for longer life • Easy and safe transportation
Features CDR 163	Benefits CDR 163
• Aluminum column • Left and right mounting drive-lever • Multi-purpose drive-lever • Roll-guided carriage • Ring mounting motor collar (60mm) • Transport handle • Pre-Mounted Rig	• Robust, reliable and lightweight • Easy to use even in confined environments. • Can be used for levelling and locking screws. • For accurate column levelling. • High accuracy drill guiding, little maintenance. • Quick and easy motor mounting without any additional tools • Easy and ergonomic handling •Use it directly out of box

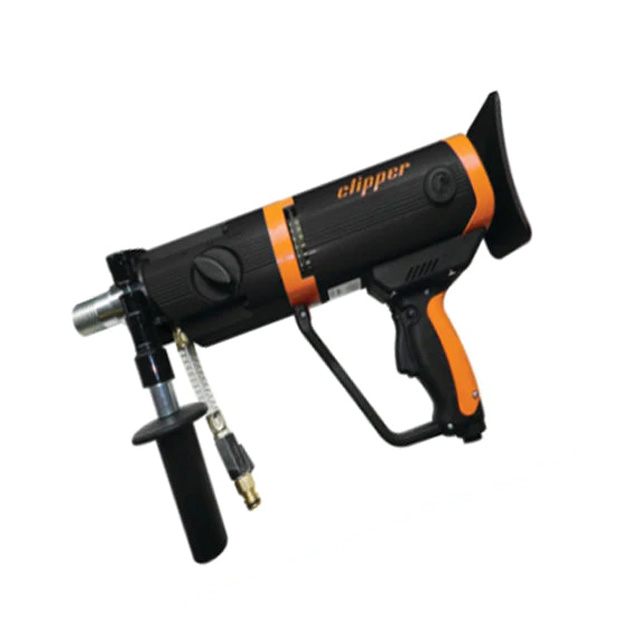

Norton CDM 163 Core Drill Specifications

Model	70184647807
Power	1800 W
Volts	230V 1Phase
Range	15-160mm
RPM under load	540 / 1200 / 2280
Application	Wet & Dry
Connection	1/2 + 1-1/4"
Weight	8.1 kg

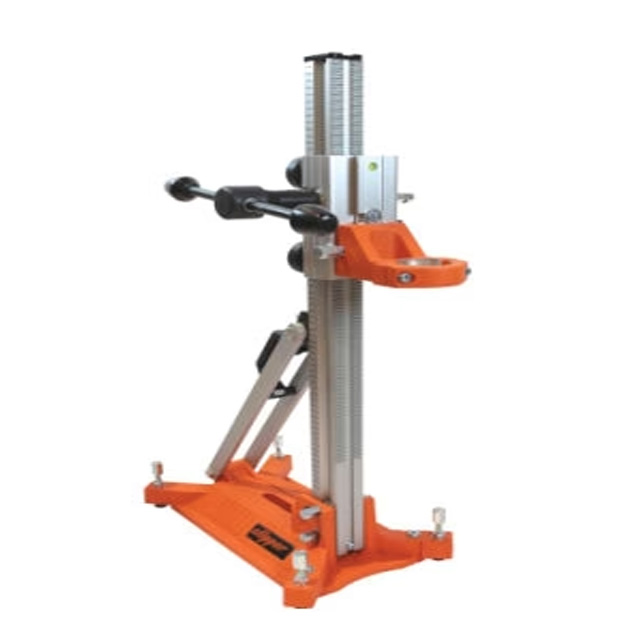

Norton CDR 163 Rig Stand Specifications

Model	310468577
Diameter Max	160mm
Hub	600mm
Column	Aluminum
Column Section	45 x 60mm
Base	Dowel + Vacuum
Base dimension	280 x 460mm
Weight	9.6 kg
Bit Guide	No
Motor mounting plate	Ring 60mm
Carraige	Aluminum
Carriage guiding system	Rolls
Carriage handle	Yes
Carraige travel	1: 1
Braces	Yes
Tilting	0-45 degrees
