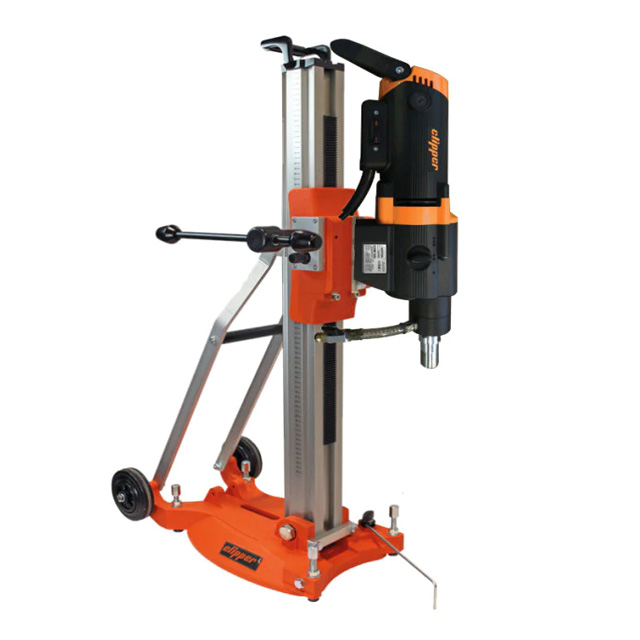

Norton CDM 353 Core Drill with Rig Stand
CDM 353 + CDR 353

Norton CDM 353 Core Drill	Norton CDR 353 Rig Stand
Powerful 3.3kW, 3 Speed Handheld Drill Motor with combined spindle 1-1/4". Can be used on a drill stand.	Aluminum drill stand combining rigidity, precision and ease of use. Accurate and smooth drilling guide of four high performance nylon rolls. Easily accessible guiding wheels for wear compensation adjustment.

Features CDM 353	Benefits CDM 353
• Powerful 3300W drilling motor • 3-speed gearbox • Standard motor mounting fixture • Overload protection • LED load indicator • Soft-start switch • Mechanical clutch • Oil-bath lubricated gearbox	• Powerful and professional motor • For a wide drilling diameter range • Fits to most drilling rigs on the market • For a wide drilling diameter range • Maintenance-free, Life-Long Lubrication • For optimum drilling in-feed and longer life. • Limitation of starting current • For optimal protection of motor and tools
Features CDR 353	Benefits CDR 353
• Aluminum column • Multi-purpose drive-lever • Roll-guided carriage • Transport Wheels • Transport handle • Pre-Mounted Rig • Standard motor mounting fixture • 4 points level adjustment	• Robust, reliable and lightweight • High accuracy drill guiding, little maintenance. • Quick and easy motor mounting without any additional tools • Easy and ergonomic handling • Can be used for levelling and locking screws. • 2 different reports/ratio for an easy work.

Norton CDM 163 Core Drill Specifications

Model	70184647810
Power	3300 W
Volts	230V 1Phase
Range	30-350mm
RPM under load	192 / 390 / 570
Application	Wet
Connection	1-1/4"
Weight	13.5 kg

Norton CDR 163 Rig Stand Specifications

Model	310468581 + 310472133
Diameter Max	400mm
Hub	690mm
Column	Aluminum
Column Section	70 x 70mm
Base	Dowel + Vacuum
Base dimension	370 x 550mm
Weight	23.9 kg
Bit Guide	Yes
Motor mounting plate	Plate included
Carraige	Aluminum
Carriage guiding system	Rolls
Carriage handle	Yes
Carraige travel	1: 1 + 2:1
Braces	Yes
Tilting	0-45 degrees
Spirit Level	Yes
Transport Wheels	Yes
Height	1080 mm
